High-Volume Commercial Motorized Punch & Isolated Wire Closer Workstation

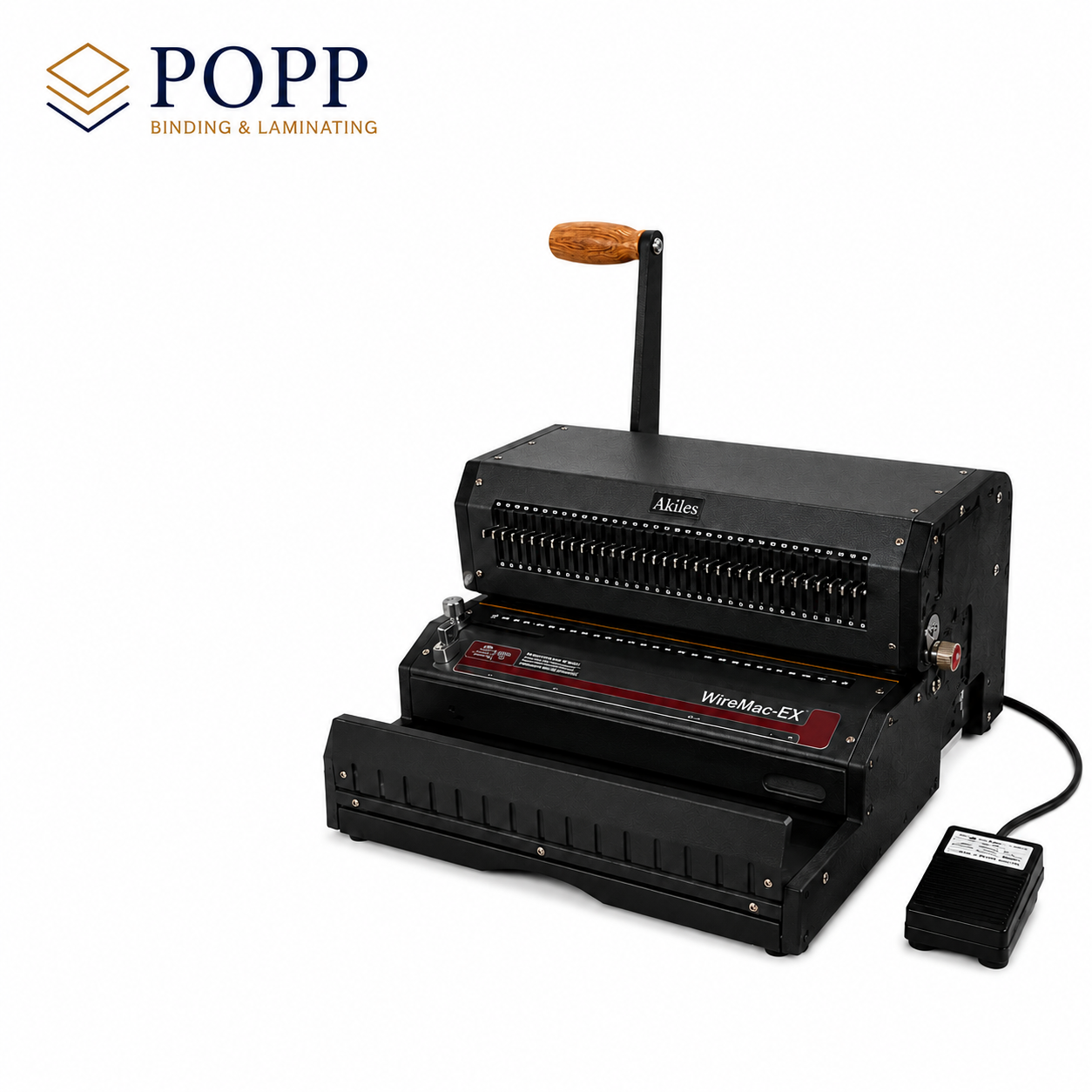

Description: Maximize your bindery throughput and completely eliminate operator downtime. The Akiles WireMac-EX is an industrial-grade, commercial electric twin-loop wire binding machine engineered specifically for high-capacity quick-print shops, commercial binderies, corporate duplication centers, and institutional print hubs. Built with a rugged, heavy-mass all-metal chassis, this production-tier workstation is equipped with a high-torque electric motor that punches through up to 25 sheets of standard paper or dense poly presentation covers per single cycle—activated instantly via a hands-free foot pedal or an on-chassis push button.

Engineered for flawless operational flexibility, the WireMac-EX features a dual-operating layout that isolates the electric punching throat from the vertical wire closing mechanism. Available in two distinct, factory-calibrated pitch configurations to match your exact portfolio track: a high-density 3:1 pitch model (3 holes per inch) optimized for sleek, professional corporate briefs, or a high-capacity 2:1 pitch model (2 holes per inch) built to handle massive manuals and thick catalog blocks. Every individual punch pin is 100% fully disengageable, giving your operators complete mechanical control to eliminate partial edge-cuts or half-holes on non-standard paper lengths. Complete with a built-in heavy-duty wire closing channel with macro-micro diameter adjustment dials and an integrated wire hanger rack, this all-in-one machine transforms raw printed pages into a bookstore-quality metal finish at maximum velocity.

Why Production Lines Standardize on the Akiles WireMac-EX:

• Isolated Dual-Fulfillment Architecture: Separates the electric punching cycle from the closing assembly line, allowing for streamlined, high-speed multi-operator production tracking.

• Hands-Free Motorized Electric Punching: High-torque motor shears through thick paper reams and dense acetate covers effortlessly, slashing assembly times and removing physical operator fatigue.

• 100% Fully Disengageable Punch Pins: Every individual cutting pin can be independently deactivated, ensuring crisp, symmetrical margins on non-standard layout profiles.

• Integrated Heavy-Duty Wire Closers: Features an adjustable vertical closing rack with an exact diameter micro-scale, ensuring twin-loop wires compress perfectly round every single time without crushing.

• Continuous Wire Insertion Channel: Equipped with a built-in front-facing hanging rack that holds the open wire spine firmly in place, allowing operators to rapidly thread pages onto the element loops.

• Dynamic Side & Depth Margin Controls: Calibrated to adjust the hole depth relative to the document stack thickness, ensuring thick manuals stay securely anchored without pages tearing loose under heavy use.

Available Machine Pitch Configurations:

• WireMac-EX31 (3:1 Pitch Module): Punches 40 square holes across an oversized 14" throat width. Optimized for slim-to-midsize presentation portfolios from 1/4" up to 9/16" in diameter (up to 120 sheets of standard 20lb paper).

• WireMac-EX21 (2:1 Pitch Module): Punches 27 square holes across an oversized 14" throat width. Heavy-duty layout engineered explicitly to compress large-diameter metal spines from 5/8" up to an armor-clad 1-1/4" thickness (up to 250 sheets).
