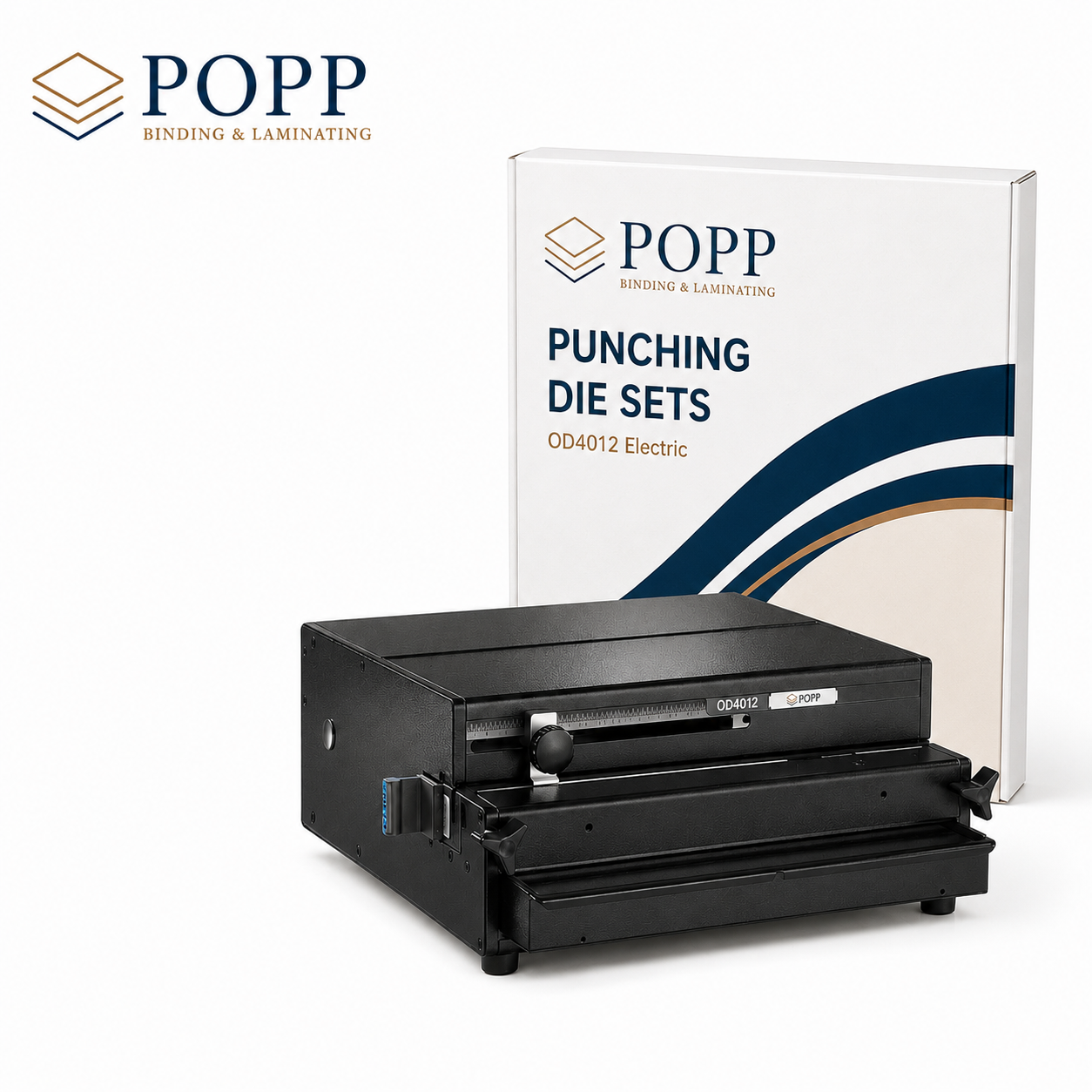

Commercial-Tier Quick-Change Die Modules for Rhin-O-Tuff OD4012 Electric Punch Platforms

Description:

Eliminate machine redundancy and maximize your print shop's hourly processing capabilities. Our Rhin-O-Tuff OD4012 Interchangeable Punching Die Sets are industrial-grade, commercial toolsets engineered specifically for the Rhin-O-Tuff OD4012 heavy-duty electric modular punch chassis. Designed to withstand demanding, high-volume production schedules, these solid tool-steel die modules slide directly into the punch throat, locking into perfect alignment with the motorized drive linkage using a simple, tool-less quick-release lever system.

Crafted from high-density, hardened tool steel, every OD4012 die block features 100% fully disengageable punch pins and a standard 11-inch punching width with open ends. This professional layout grants your operators absolute control to eliminate partial edge-punches or half-holes on non-standard paper lengths by simply pulling specific pins forward out of alignment. Capable of cleanly shearing through up to 30 sheets of standard paper or multiple sheets of rigid 10-Mil poly covers per single electric stroke, these heavy-mass dies completely eliminate pin deflection, edge burring, and paper-jam binding over millions of high-torque production cycles.

Why Production Print Shops Standardize on Rhin-O-Tuff OD4012 Die Blocks:

• 60-Second Quick-Change System: Tool-less sliding architecture allows operators to pull one die out and slide a new format in, minimizing downtime between distinct print runs.

• 100% Independent Disengageable Steel Pins: Every cutting pin can be deactivated instantly, ensuring clean, symmetrical margins on custom presentation sizes.

• Hardened Tool-Steel Matrix Construction: Built to absorb continuous, high-velocity electric impacts without drift, maintaining absolute cutting sharpness through dense cardstocks, heavy laminates, and thick vinyl backings.

• Open-Throat Continuous Punching: Features an 11-inch base punch path with open sides, enabling operators to easily double-punch oversized landscape sheets, architectural schematics, or blueprints.

• Dynamic Depth Margin Controls: Calibrated to set deep margin spacing on high-capacity booklets, ensuring thick manuals stay securely bound without the outer pages tearing loose under continuous use.

Available Industrial Die Variant Configurations:

• 4:1 Pitch Plastic Coil (Standard Round Holes): Universal 4-holes-per-inch spiral spacing calibrated for daily workbook production lines.

• 4:1 Pitch Plastic Coil ($4\text{mm} \times 5\text{mm}$ Oversized Oval Holes): The commercial print standard. The elongated oval geometry slashes paper friction, allowing plastic coils to spin through the book block up to 40% faster than standard round holes—drastically scaling your manual assembly throughput.

• 3:1 Pitch Twin-Loop Wire (Square or Round Holes): Elite boardroom layout designed for clean, precise metal presentations up to 120 sheets thick.

• 2:1 Pitch Twin-Loop Wire (Square or Round Holes): Heavy-capacity metal wire layout engineered to anchor heavy training manuals and catalog blocks from 130 to 250 sheets thick.

• 19-Ring Plastic Comb (Rectangular Holes): Standard legacy administrative layout for corporate binders, school directories, and internal legal files.

• 3-Hole Binder Format: Specialized high-capacity utility die designed to punch perfect round holes for standard 3-ring binder inserts in a single high-velocity cycle.
