Commercial 4-Roller Hot and Cold Document Finisher for Photographic and Security Badges

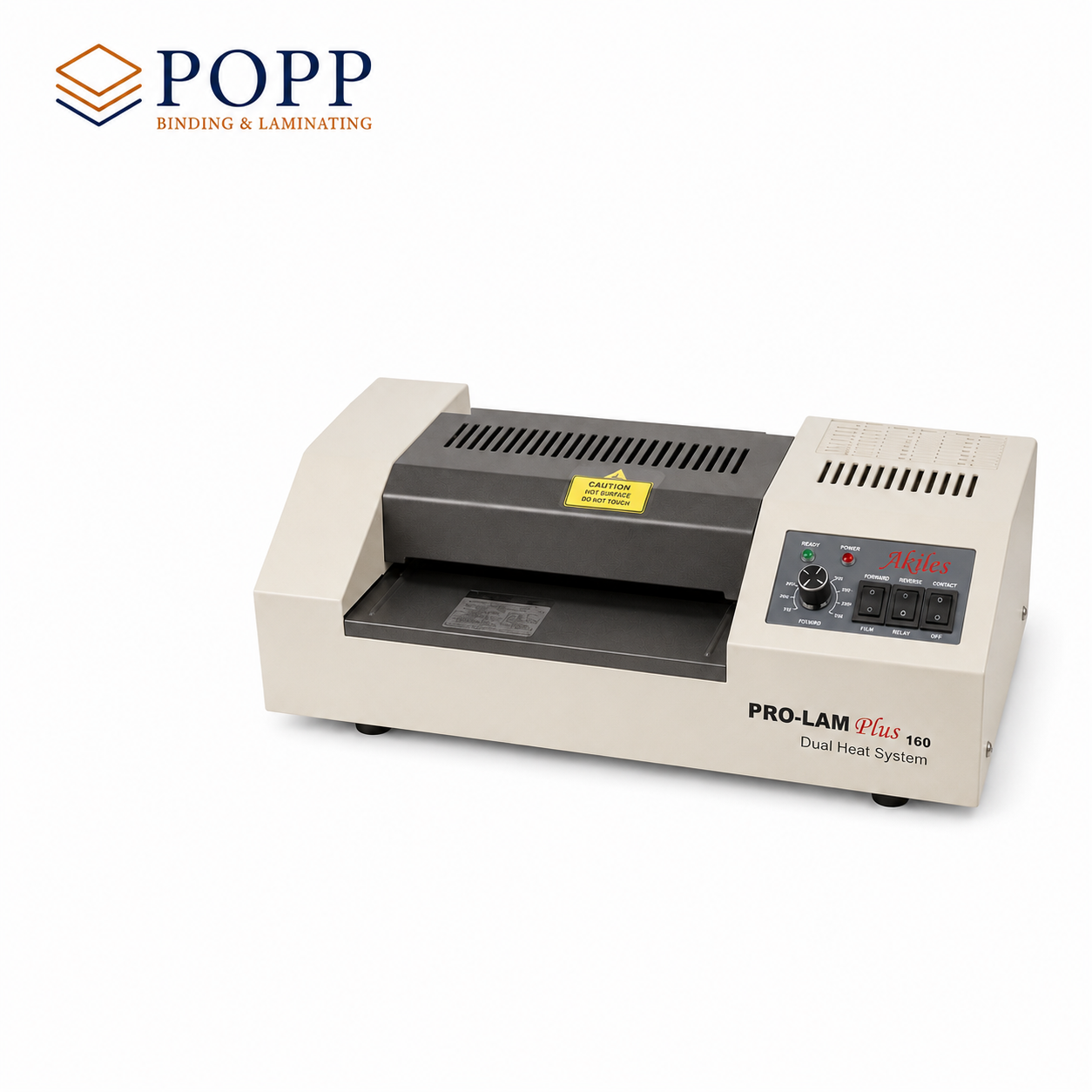

Description: Stop fighting with cheap, plastic office laminators that jam, cloud, and ruin your expensive proximity cards. The Akiles Pro-Lam Plus 160 is a commercial-grade desktop pouch laminator engineered for high-volume ID badge production, corporate security desks, school administrative offices, and quick-print shops. Featuring a compact, specialized 6.25-inch feed throat, this all-metal machine is perfectly optimized to laminate small-format documents up to legal-sized photo IDs and luggage tags with retail-sharp precision.

The mechanical superiority of the Pro-Lam Plus 160 centers on its heavy-duty 4-Roller Heat Distribution System. By integrating independent heating elements directly inside the vulcanized silicon rollers, the machine applies perfectly uniform thermal energy and deep mechanical compression simultaneously. This eliminates the clouding, silvering, and air bubbles common in cheap heating-plate alternatives, ensuring crystal-clear optical transparency across all high-density inks, photographic emulsions, and RFID smart cards.

Why the Pro-Lam Plus 160 is the Professional Fleet Standard:

• Industrial 4-Roller Architecture: Utilizes two internally heated rollers to melt the pouch adhesive evenly, followed instantly by two cold-pull rollers to flatten and chill the plastic for a perfectly flat, warp-free finish.

• Heavy-Gauge All-Metal Chassis: Built to survive decades of continuous use on a busy print or security desk. The rugged steel housing absorbs thermal stress and prevents internal component warping.

• Micro-Calibrated Temperature Control: An adjustable variable temperature dial allows operators to fine-tune the heat profile to accommodate ultra-thin 3-Mil badges up to rigid, heavy-duty 10-Mil security casings.

• Electronic Motor Reverse Switch: Equipped with a front-facing forward/reverse rocker toggle to instantly back out misaligned or crookedly fed pouches, completely preventing catastrophic film wraps and operational downtime.

• Carrier-Free Production Speed: Premium vulcanized silicon rollers are engineered to slide through high-gauge laminating pouches without requiring a protective cardboard carrier sleeve, doubling your hourly output.

• Hot & Cold Versatility: Seamlessly switches from thermal lamination to a cold setting for pressure-sensitive self-adhesive laminating films.

Technical Specifications:

• Maximum Lamination Width: 6.25 Inches (160mm).

• Laminating Pouch Capacity: 3-Mil to 10-Mil thicknesses.

• Heating Configuration: 2 Internally Heated Rollers (4 Rollers Total).

• Temperature Adjustment: Variable analog control dial.

• Chassis Build: Heavy-duty, impact-resistant structural steel housing (13 lbs).

• Target Applications: Security ID badges, luggage tags, horizontal/vertical visitor passes, business cards, and membership loyalty cards.
