Industrial 12" Dual-Driven Motorized Roller Station for High-Volume Spiral Binding

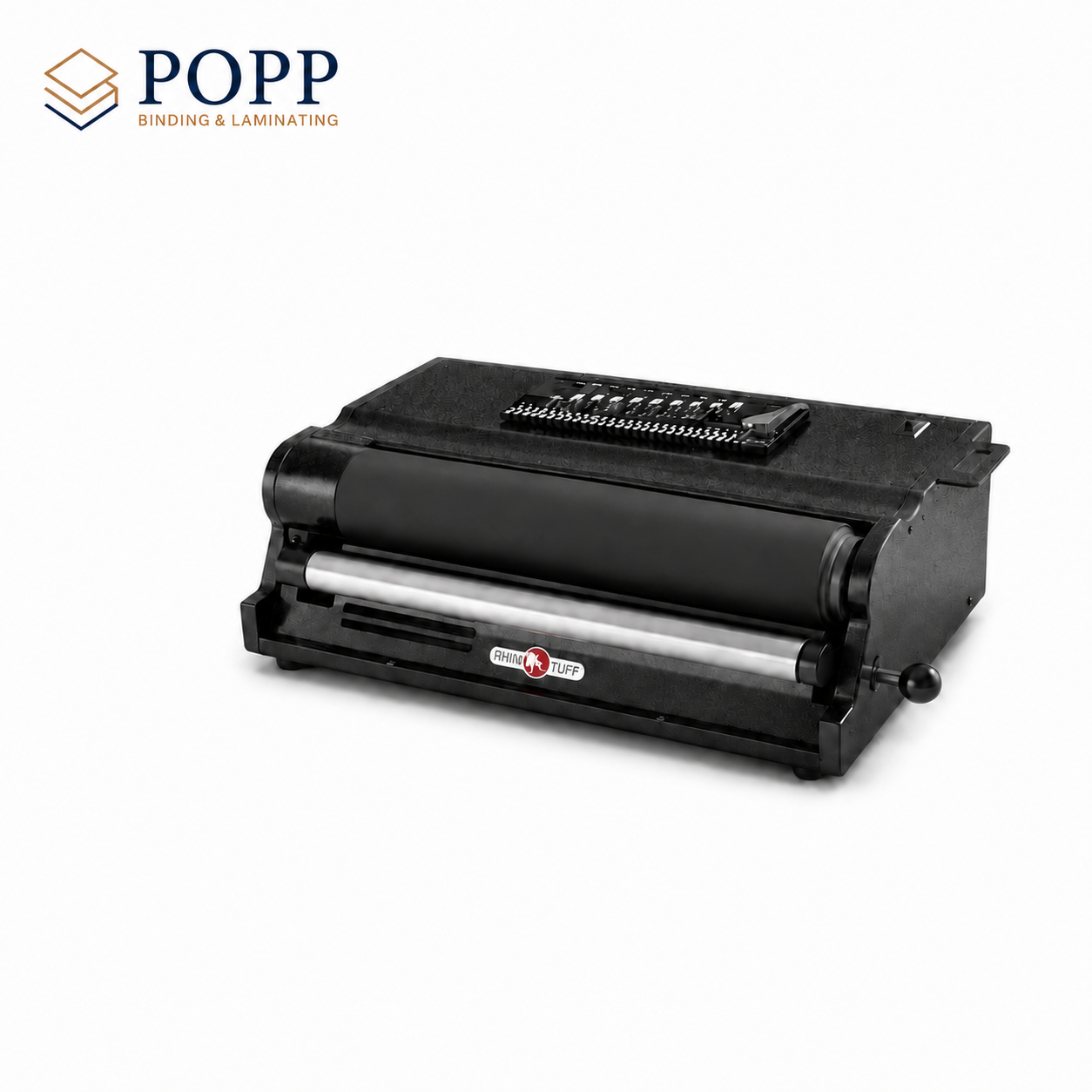

Description: Eliminate processing failures and maximize your spiral binding throughput. The Rhin-O-Tuff Onyx HD4170 is a commercial-grade, standalone electric coil inserter engineered to handle high-volume document finishing in quick-print shops, commercial binderies, and corporate distribution hubs. Driven by a rugged, high-torque motor assembly, this heavy-duty workhorse spins plastic coils through pre-punched pages in seconds, turning a notorious assembly line bottleneck into a rapid, low-strain operation.

Constructed entirely of solid steel and heavy alloys, the HD4170 features a full 12-inch dual-roller system. The lower roller is made of high-traction, vulcanized rubber to grip the plastic filament firmly, while the upper polished steel roller adjusts mechanically via a side-mounted lever to match the exact diameter of your coil. This industrial mechanical link accommodates everything from slim 6mm office booklets up to massive, high-capacity 50mm manuals, making it the most reliable standalone roller station on the production floor.

Why the Onyx HD4170 Outperforms Light-Duty Inserters:

• Dual-Powered Roller Mechanics: Active upper and lower roller interaction provides uniform feeding pressure across the entire spine, preventing the coil from stalling or wandering out of alignment on thick books.

• Rapid Leverage Adjustment: Side adjustment lever lets operators quickly open or close the roller gap to dial in the perfect amount of surface friction required for specific coil diameters.

• Built-In Diameter & Pitch Gauge: Includes a precision sorting template and thickness sizing scale mounted directly on top of the chassis faceplate for instant inventory and booklet configuration checking.

• Ergonomic Foot Pedal Operation: Controlled by a commercial-grade foot switch, leaving both of the operator's hands free to hold the curved page block and guide the plastic coil into the moving rollers.

• Universal Pitch Compatibility: Works flawlessly with 4:1 Pitch, 5:1 Pitch, and custom spiral profiles without requiring component swapouts or internal gear changes.

• Standalone or Modular Mount Options: Functions beautifully as an independent finishing bench cell, or can be mounted directly to the top of Rhin-O-Tuff heavy-duty electric punches (like the HD7000 or OD4012) to save valuable shop footprint.

Technical Specifications:

• Operation Type: Motorized Electric (Continuous-duty heavy-duty motor).

• Activation: Commercial Foot Pedal included.

• Coil Capacity Range: 6mm (1/4") up to 50mm (2") diameters.

• Effective Roller Length: 12 Inches (305mm) with open throat configuration for longer formats.

• Chassis Composition: Solid all-steel framework and heavy industrial castings (31 lbs).

• Compatibility: Universal for all standard plastic binding coil pitches.
