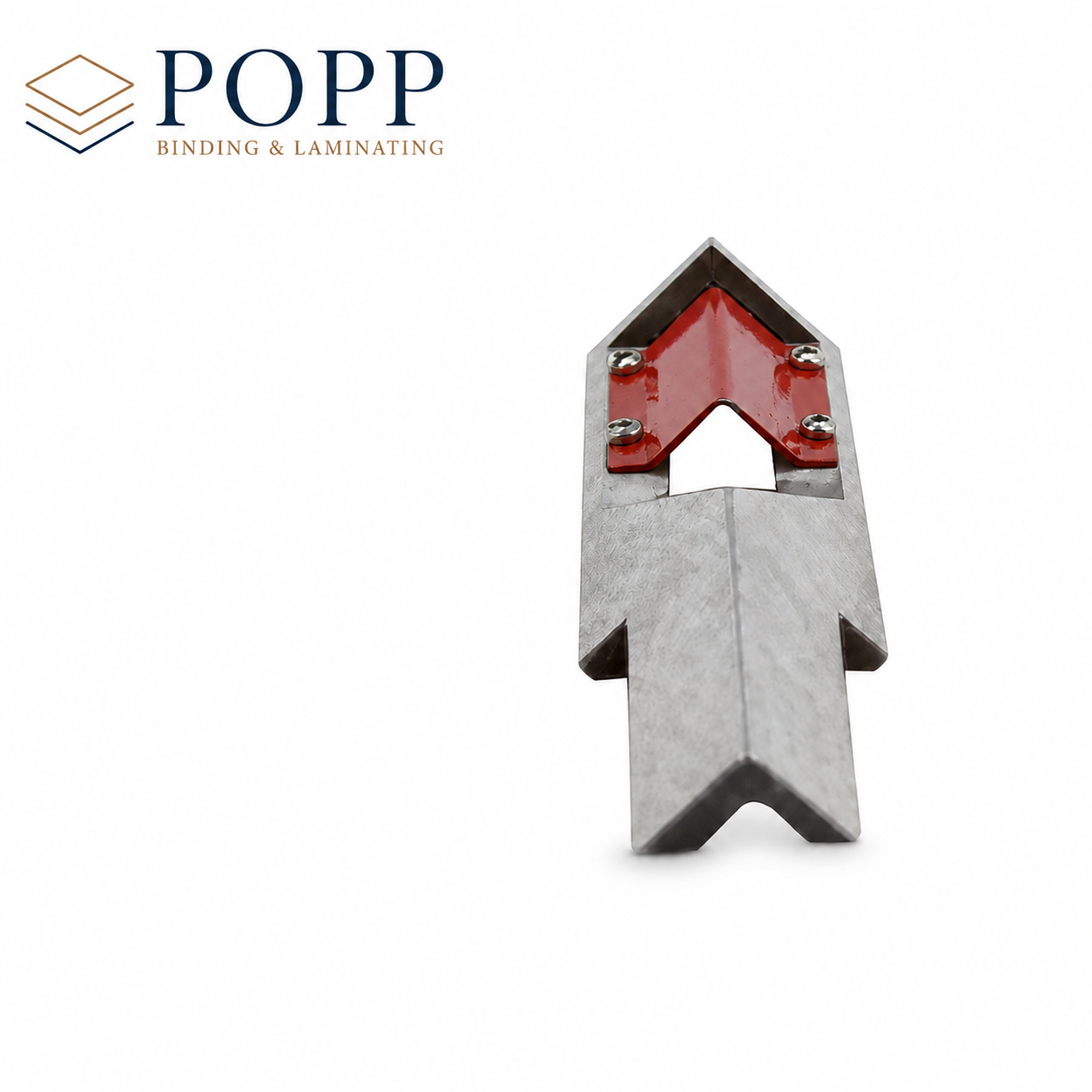

Interchangeable Hardened Steel Cutting Die Blocks for Diamond-5 Cornering Stations

Description: Eliminate knife-sharp document edges and deliver an elite, retail-sharp border aesthetic to your print output. Our Akiles Diamond-5 Corner Rounder Dies are commercial-grade, interchangeable mechanical toolsets engineered specifically for the Akiles Diamond-5 heavy-duty manual and electric corner rounding hardware platforms. Built to handle relentless production schedules across quick-print hubs, corporate graphic labs, and card facilities, these self-contained die blocks slide seamlessly into the parent machine head, locking into absolute center alignment instantly without requiring mechanical recalibrations or wrenches.

Crafted from high-density, hardened carbon tool steel, every Diamond-5 die set features a precision-ground upper shear blade paired with a matched lower counter-die matrix. This high-leverage mechanical layout allows your operators to cleanly slice through a dense stack of sheets up to 1.97 inches (50mm) thick in a single stroke—completely eliminating the edge-burring, fracturing, and page-jamming common with lightweight office punchers. From flexible paper cardstocks to rigid 10-Mil acetate covers, magnetized stocks, and thin aluminum badge plates, these industrial tool dies shear with razor precision across millions of continuous production cycles.

Why Commercial Print Rooms Standardize on Akiles Diamond-5 Dies:

• 10-Second Tool-Less Quick Swap: Precision alignment rails allow the die block to slide directly into the Diamond-5 chassis head, locking down instantly with a simple hand thumb-screw.

• Hardened Tool-Steel Construction: Formulated to absorb continuous high-impact strokes without edge dulling or alignment drift, even when shearing tough synthetic and plastic stocks.

• Massive 2" Stack Capacity Tooling: Calibrated to slice through up to a 500-sheet ream block simultaneously, multiplying your shop finishing throughput by up to 20x compared to single-sheet hand-punches.

• Flawless Self-Sharpening Mechanics: The upper carbon steel curved blade maintains constant lateral pressure against the lower anvil base, generating a crisp, clean shear effect that prevents paper fiber fraying.

• Multi-Material Shearing Prowess: Easily profiles standard paper bonds, heavy leatherette covers, thick polypropene backings, laminated restaurant menus, PVC badges, and thin gauge sheet metals.

Available Radius and Specialty Variant Configurations:

• 1/8" (3.5mm) Micro-Radius Die: Optimized for delicate, subtle edge refinement on standard business cards, pocket ID badges, and loyalty passes.

• 1/4" (6mm) Universal Utility Die: The undisputed commercial industry benchmark size. Form-fitted for standard corporate report covers, school workbooks, brochures, and flyers.

• 3/8" (10mm) Executive Contour Die: Delivers a deep, highly visible elegant radius. Built specifically for heavy restaurant menus, oversized retail signage, and premium presentation portfolios.

• Straight Cut / Diagonal Slasher Die: A specialized utility line that applies a clean, 45-degree corner chamfer to document borders. Perfect for custom binders, tags, and industrial index books.

• Half-Moon Calendar Punch Die: Precision-calibrated thumb-notch cutter built for drilling thumb hooks into seasonal wall calendars, operating in perfect tandem with twin-loop metal wire binding lines.
