Commercial 24-Hole Electric Punch and Manual Closer Station for High-Volume Plastic Combs

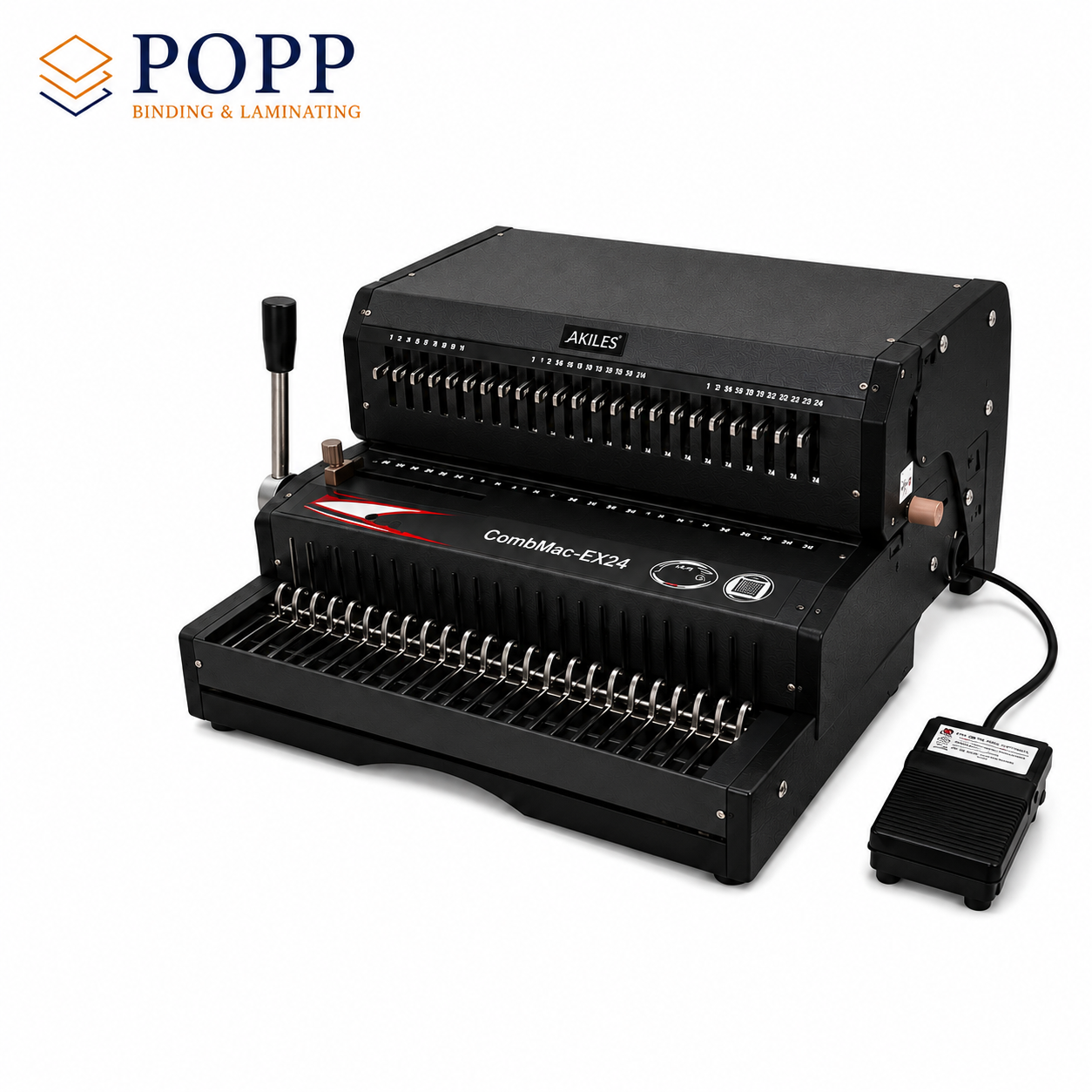

Description: Eliminate manual punch fatigue and instantly maximize your document throughput. The Akiles CombMac-Ex24 is a commercial-grade, heavy-duty electric punch and manual comb binder combination engineered for high-volume quick-print shops, corporate copy centers, school districts, and legal administrative offices. Driven by a rugged, high-torque electric motor and solid-steel internal gear linkages, this continuous-duty workhorse punches up to 25 sheets of 20lb paper per cycle with a single tap of a foot pedal—delivering retail-sharp, burr-free holes across heavy cardstocks, poly covers, and acetate presentation sheets without a single hint of motor lag.

Designed for complete structural longevity, the CombMac-Ex24 features an extra-wide 14-inch punching throat with an open-ended framework, allowing operators to seamlessly process standard letter formats, legal sizes, or oversized landscape booklets. Equipped with a heavy-duty standalone comb opener mechanism operated by an ergonomic manual handle, this dual-station workspace allows you to continuously punch and load sheets onto the open plastic comb filament in one smooth, uninterrupted production sequence.

Why the CombMac-Ex24 Dominates Commercial Comb Binding:

• Effortless Electric Punch Engine: Motorized foot-pedal activation completely eliminates physical shoulder and wrist strain, allowing a single operator to comfortably assemble hundreds of books a day.

• 24 Fully Disengageable Precision Pins: Every single punch pin can be independently pulled out of alignment. This gives operators the ability to customize the punch path instantly, ensuring clean, perfectly centered margins with zero partial "half-holes" on custom page widths or international sizes.

• Massive 14" Throat Capacity: Handles standard 11" Letter size, 14" Legal formats, and oversized corporate sheets with room to spare, while the open-throated design permits rapid double-punching for extra-long layouts.

• Micro-Adjustable Depth Margin Control: A multi-position depth adjustment dial allows the operator to change the distance between the document edge and the punched holes. Thicker books get a deeper margin to prevent pages from tearing out under heavy usage.

• Heavy-Duty Independent Comb Opener: The manual comb spreading mechanism expands standard plastic combs up to a full 2 inches in diameter, holding the plastic spine open securely while you pile pages on.

• Rugged All-Metal Construction: Weighing over 50 lbs, the solid steel framework absorbs the continuous mechanical torque of rapid electric punching, ensuring zero chassis flex and absolute parallel cutting precision over millions of cycles.

Technical Specifications:

• Operation Type: Electric Foot-Pedal Punching with Manual Handle Comb Opener.

• Maximum Punch Capacity: Up to 25 sheets of 20lb bond paper per cycle.

• Maximum Binding Capacity: Up to 2" (50mm) thickness (Approx. 425 sheets of paper).

• Punching Width: 14 Inches (356mm) with open-throat capability.

• Disengageable Pins: 24 Independent Pull-Pins.

• Chassis Build: Heavy-gauge industrial metal framework.
