Commercial Motorized Roller Station with Integrated Manual End-Crimper

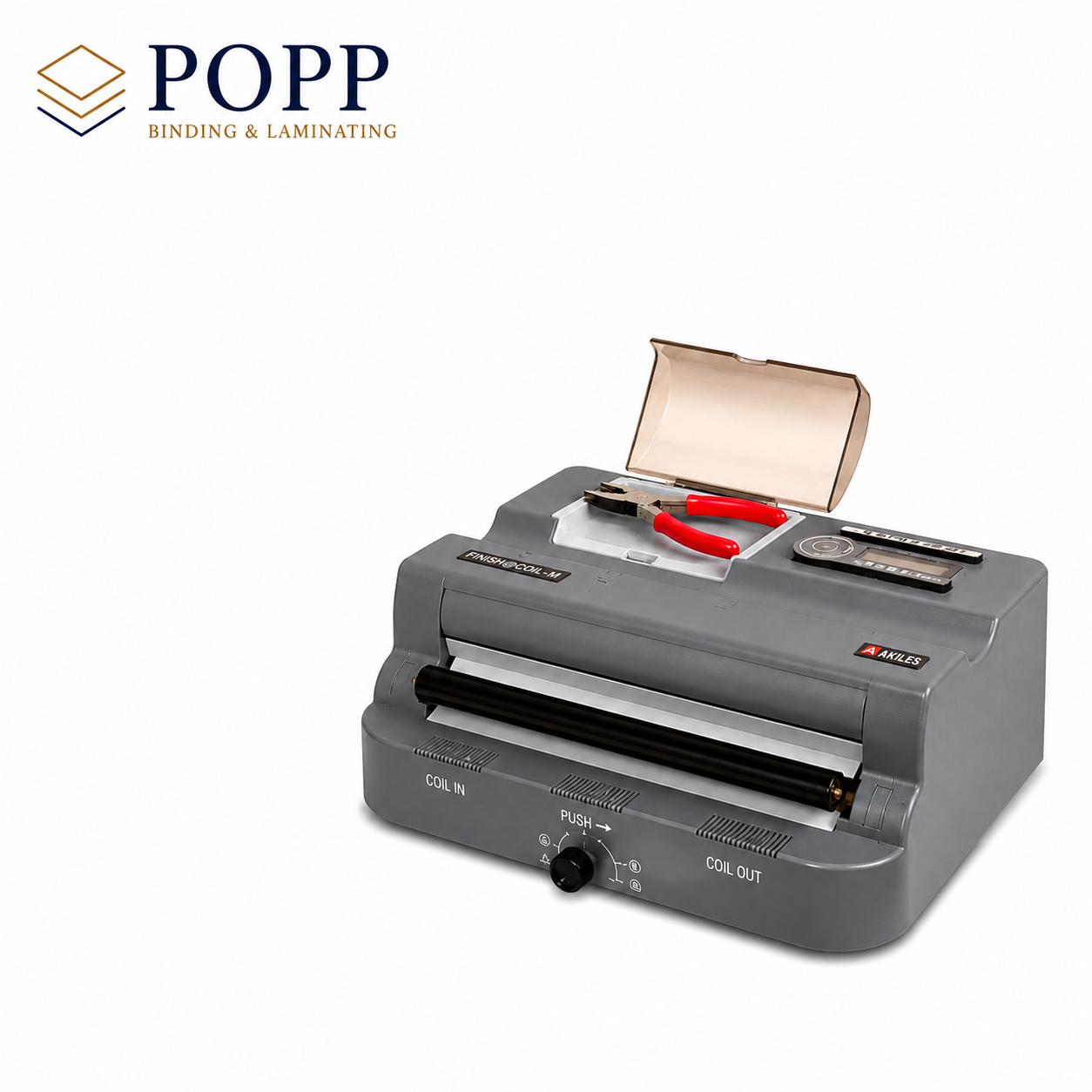

Description: Consolidate your spiral binding line into a single, high-speed workspace cell. The Akiles Finish@Coil-M is a commercial-grade electric desktop coil inserter engineered for print shops, copy centers, schools, and corporate document hubs. Powered by a high-torque, continuous-duty motor, this professional machine utilizes a full-size 11.375" EPDM rubber roller to spin plastic coils through pre-punched document holes in less than two seconds—slashing manual processing times by up to 80% and removing physical hand strain completely.

The defining operational advantage of the Finish@Coil-M is its dual-purpose chassis design. It features an integrated, heavy-duty manual coil crimping mechanism built directly into the top deck of the unit. This eliminates the common print room problem of lost, damaged, or dropped hand pliers. An operator can guide the book against the electric roller to spin the coil, lift the book directly into the built-in cutter, and pull the lever to lock the spine—creating a seamless, single-station production workflow.

Why the Finish@Coil-M is a Mandated Bindery Asset:

• 2-Second Motorized Insertion: High-traction EPDM rubber roller grips plastic filaments firmly, spinning coils effortlessly through thin flyers or thick corporate reports.

• Integrated End-Crimper Mechanism: Built-in manual cutting and crimping station cleanly clips excess plastic filament and folds a secure lock-tab onto the spine, keeping pages permanently bound.

• Adjustable Roller Alignment: Features a multi-position lower alignment roller that adjusts smoothly to match varying coil diameters, ensuring optimal friction for sizes from 6mm up to 50mm.

• Commercial Foot Pedal Activation: Driven by a rugged foot switch assembly, keeping both of the operator's hands free to hold the paper block and guide the spinning coil into the throat.

• Etched Pitch and Diameter Gauges: Includes built-in sizing templates and thickness guides right on the faceplate for rapid document inspection and inventory sorting.

• Rugged All-Metal Construction: Solid steel internal gears and structural framing prevent vibration and drift, keeping the unit completely anchored to your finishing bench.

Technical Specifications:

• Operation Type: Motorized Electric Insertion with Manual Chassis-Mounted Crimper.

• Activation: Heavy-Duty Commercial Foot Pedal included.

• Coil Capacity Range: 6mm (1/4") up to 50mm (2") diameters.

• Roller Length: 11-3/8 Inches (289mm) with an open-throat design for longer document layouts.

• Pitch Compatibility: Universal (Handles 4:1 Pitch, 5:1 Pitch, and custom spiral profiles).

• Chassis Build: Heavy-gauge industrial metal framework (Approx. 24 lbs).
