Commercial Standalone Roller Station with Integrated Electric Double-Sided End Crimper

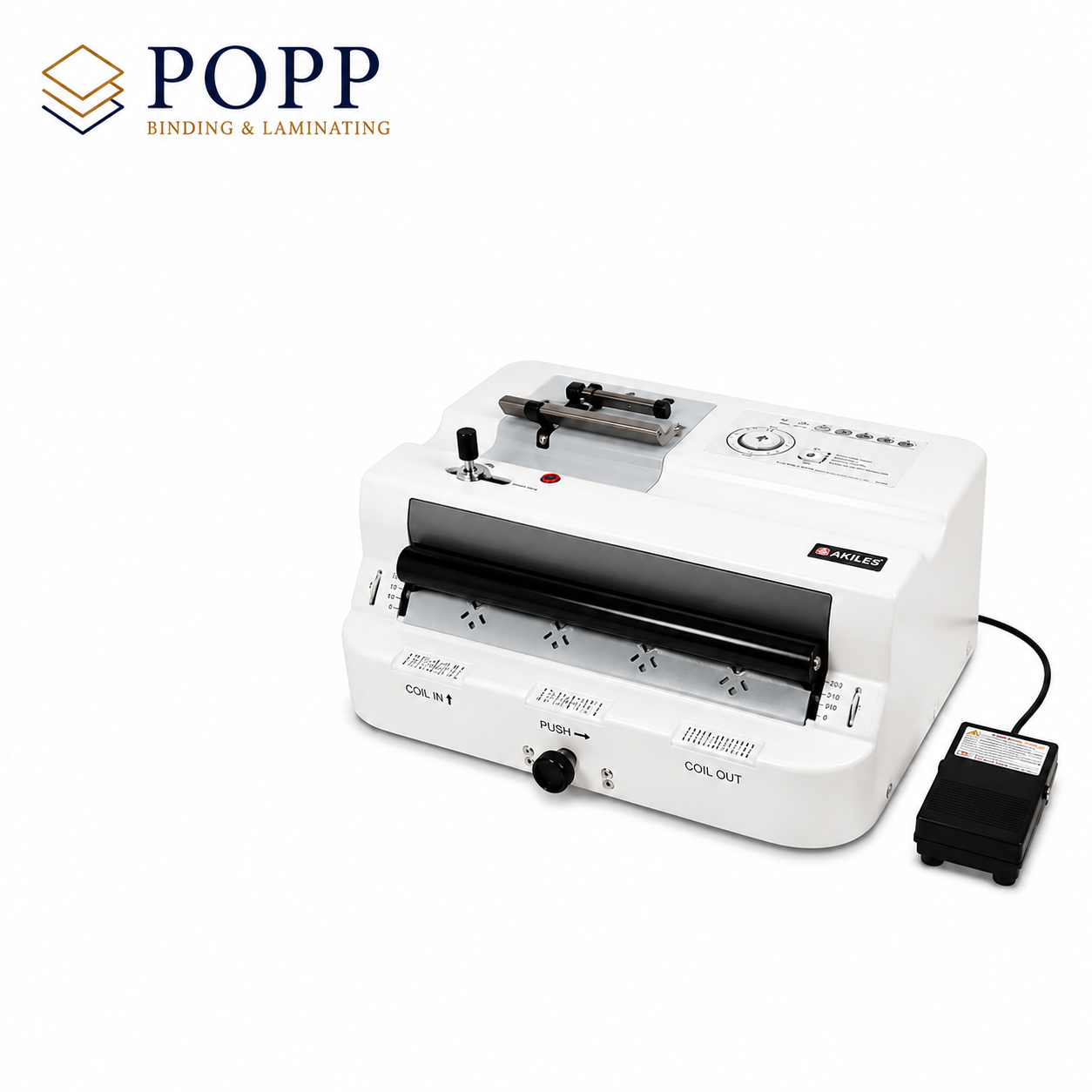

Description: Completely automate your spiral binding line and eliminate manual hand strain forever. The Akiles Finish@Coil E1 is a commercial-grade, fully electric desktop coil inserter and finisher engineered for high-volume print shops, commercial binderies, large school districts, and corporate document distribution hubs. Powered by a high-torque, continuous-duty dual-motor configuration, this industrial workhorse spins plastic coils through your document blocks in seconds, then cuts and locks both ends of the spine simultaneously at the press of a pedal.

The defining operational breakthrough of the Finish@Coil E1 is its integrated Electric Double-Crimp System. It eliminates the common print room bottlenecks of dropping hand pliers, tearing coil filaments, or crimping edges unevenly. The machine features two synchronized electric cutting heads that adjust along a 12-inch guide track to match your booklet's width. Once the coil is spun through the pages, simply drop the booklet into the crimp channel, press the foot pedal, and watch both ends get trimmed and neatly folded into secure lock-tabs instantly.

Why the Finish@Coil E1 is the Ultimate Automation Asset:

• Fully Automated Production Line: Combines high-speed motorized insertion and dual-sided electric end-crimping into a single, compact desktop footprint.

• Synchronized Dual Electric Crimping: Slices off excess plastic filament and neatly folds a secure lock-tab onto both ends of the spine simultaneously, maximizing your hourly output.

• Full-Size 11.375" EPDM Rubber Roller: High-traction, vulcanized rubber roller grips plastic filaments firmly, spinning coils effortlessly through thin flyers or heavy-duty manuals.

• Tool-Less Adjustable Crimp Track: Sliding trimmer brackets adjust smoothly via manual thumb dials to accommodate document widths from a compact 5-inch booklet up to a full 12-inch landscape layout.

• Dual Foot Pedal Operation: Features independent foot switches—one to activate the high-speed spinning rollers, and one to fire the dual electric crimp knives—leaving the operator's hands free to hold the paper block.

• Heavy-Gauge Metal Chassis: Built with solid steel internal gears and a rigid framework (weighing 51 lbs) to ensure vibration-free, rock-solid stability during continuous all-day production.

Technical Specifications:

• Operation Type: Motorized Electric Insertion with Synchronized Electric Dual End-Crimper.

• Activation: Two Commercial-Grade Foot Pedals included.

• Coil Capacity Range: 6mm (1/4") up to 50mm (2") for insertion / 6mm to 25mm (1") for automated electric crimping.

• Document Width Capacity: 5 Inches up to 12 Inches (127mm to 305mm) for the electric trimmers.

• Pitch Compatibility: Universal (Handles 4:1 Pitch, 5:1 Pitch, and custom spiral profiles).

• Chassis Build: Heavy-duty, all-metal industrial construction (51 lbs).
