Integrated Touch-Button Punching, Dual-Roller Inserting & Powered Crimping

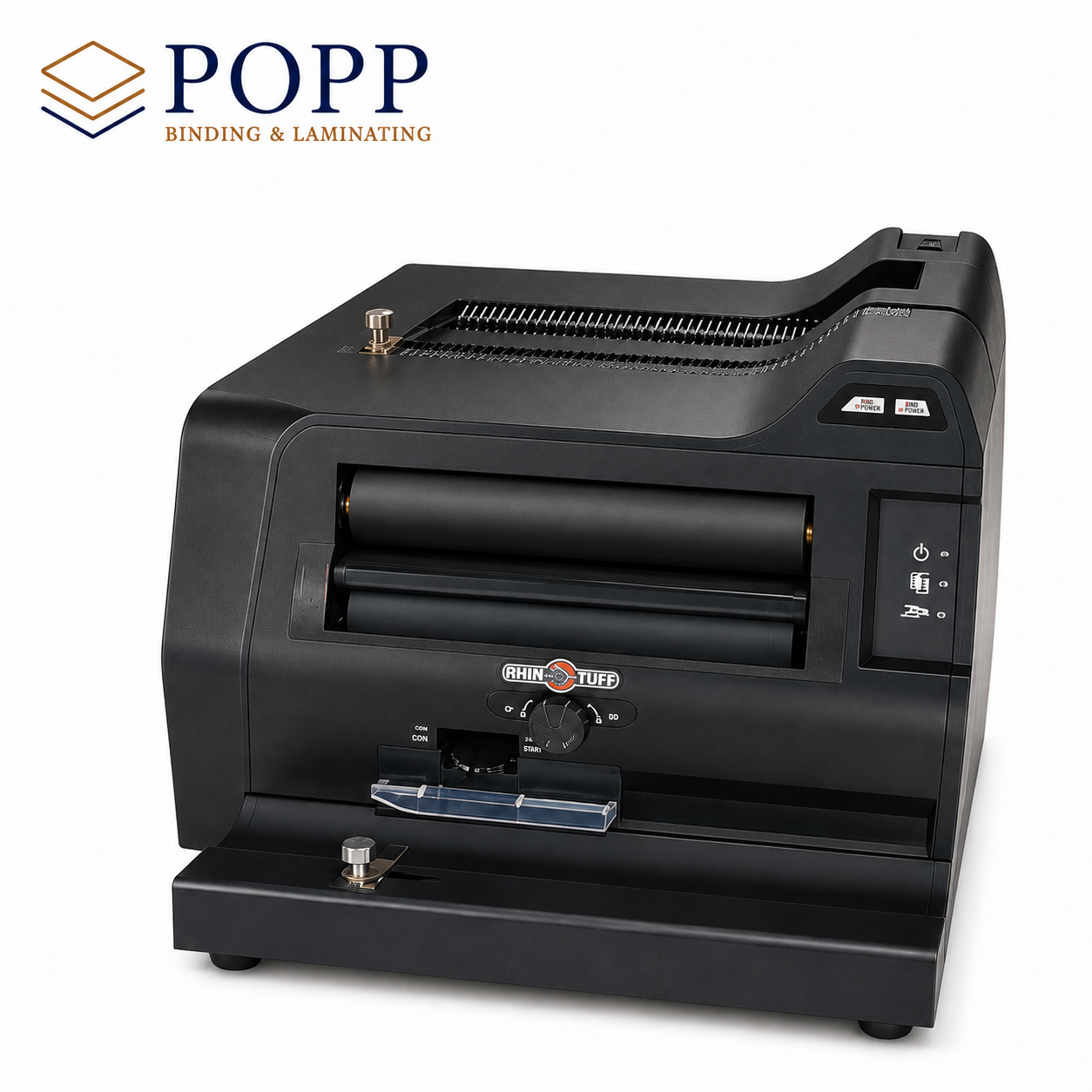

Description: Consolidate your entire spiral binding production line into a single, high-efficiency desktop footprint. The Rhin-O-Tuff Coil Binding System 3000 (CBS3000) is a commercial-grade, all-electric finishing center engineered to handle every phase of document assembly. Built to eliminate the need for separate standalone punches, rolling tables, and hand pliers, this fully integrated machine allows a single operator to move seamlessly from raw loose pages to a flawlessly crimped book in three automated steps.

Featuring an industrial high-torque motor, the CBS3000 delivers electric, gravity-assisted vertical punching for up to 20 sheets of 20lb paper at a time. The integrated, full-length motorized dual coil rollers feed plastic filament rapidly through precision-punched 4mm x 5mm oval holes. To finish the job, the built-in electric power crimper instantly cuts and bends the coil ends with a quick tap of the foot pedal—completely removing the wrist fatigue and inconsistency of manual hand tools.

Why the CBS3000 is the Ultimate Workspace Multiplier:

• True Three-In-One Integration: Houses an electric punch, a full-size motorized dual-roller inserter, and an automated electric power crimper inside a single compact chassis.

• Tool-Free 6mm to 50mm Adjustment: The entire mechanism scales from thin 30-page documents up to massive 2-inch industrial manuals (440 sheets) without requiring separate die heads or complex tool conversions.

• The Oval Hole Advantage: Punches oversized 4mm x 5mm oval holes. This unique geometry expands the threading path, boosting manual coil insertion speeds by up to 50% on extra-thick projects.

• 47 Fully Disengageable Pins: Pull any individual pin to adjust the punching path instantly. This feature ensures clean, perfectly symmetric margins on custom layouts, landscape prints, or A4 sheets without unwanted partial edge-holes.

• Hands-Free Control Toggle: Utilize the commercial foot pedal to alternate between hands-free punching and rapid, double-ended crimping, keeping both hands firmly on the document structure for flawless alignment.

• Open-Ended Vertical Punch Throat: The vertical, gravity-aligned punch throat guarantees square edge seating, while the open throat design allows continuous double-punching for extended documents up to 23.4 inches in length.

Technical Specifications:

• Punching & Crimping: All-Electric (Foot Pedal / Touch Button operated).

• Punch Capacity: Up to 20 sheets (20lb bond).

• Inserting System: Full-length dual motorized rollers (Continuous On/Off switch).

• Binding & Crimp Capacity: 6mm to 50mm diameter coils (Up to 2" / 440 sheets).

• Hole Pattern: 4:1 Pitch Oval Holes (4mm x 5mm with .2475" center spacing).

• Chassis Build: Heavy-duty tabletop construction (75 lbs).
