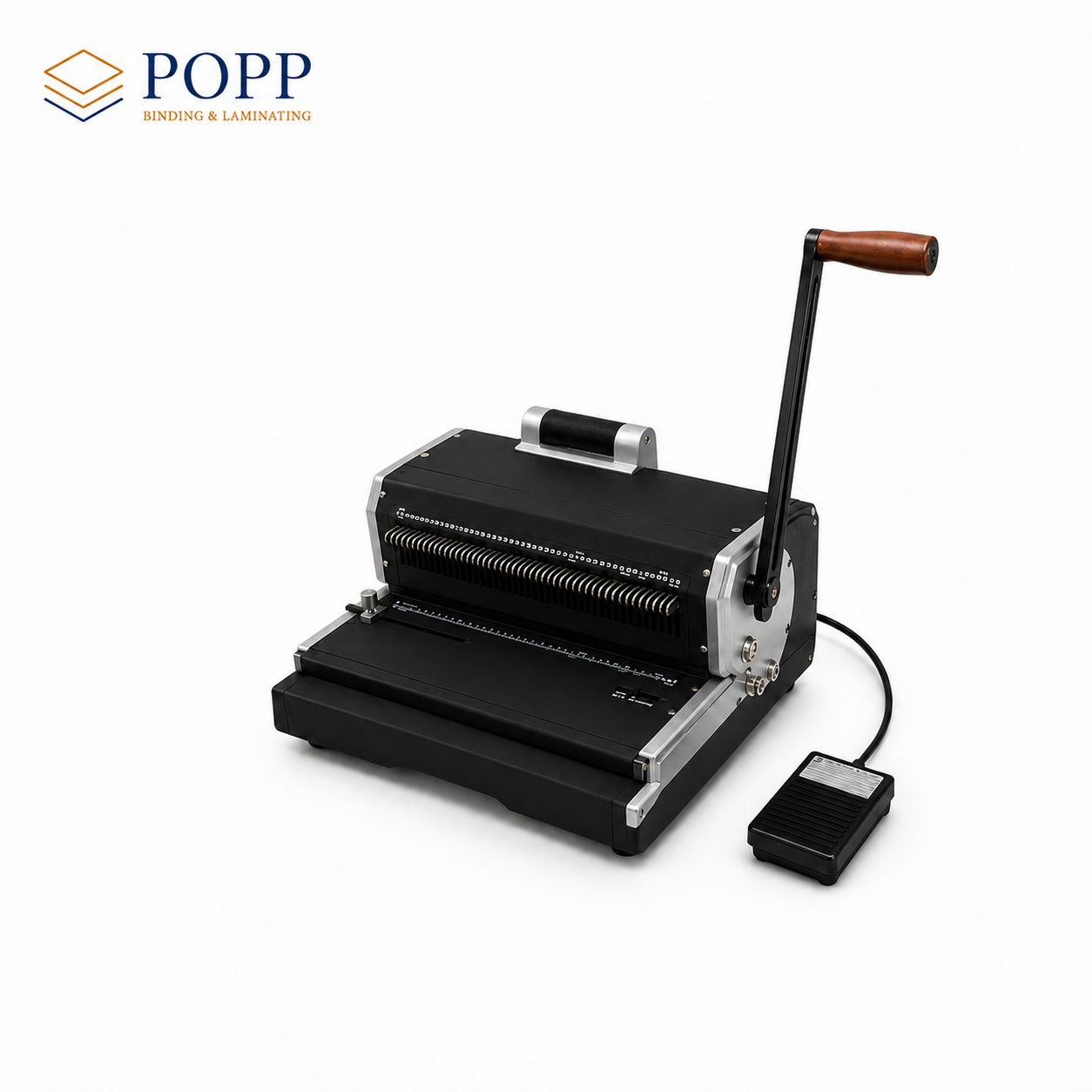

Akiles CoilMac-ER Plus | Manual Coil Punch with Electric Inserter

The All-In-One Solution for High-Speed Spiral Binding Production

Why settle for a manual process when you can bind twice as fast? The Akiles CoilMac-ER Plus is a hybrid powerhouse designed to eliminate the most time-consuming part of document finishing: hand-twisting coils. While the punching is handled by a heavy-duty manual lever, the "ER" model features a built-in, full-size Electric Coil Inserter. Once your holes are punched, simply hold your coil against the motorized roller and watch it thread through the document in seconds.

Equipped with 4mm x 5mm Oval Holes, this "Plus" model makes coil insertion even easier by providing more "wiggle room" for the plastic filament. It is the perfect upgrade for mid-volume offices and print shops that need professional results without the industrial price tag of a fully electric punch.

Why the CoilMac-ER Plus is the Ultimate Productivity Tool:

• Integrated Electric Roller: The built-in motor spins your coils through the punched holes instantly, reducing manual labor and significantly increasing your output per hour.

• Oval Hole Advantage: The "Plus" designation means this machine punches oval holes rather than standard circles. This subtle change reduces friction during insertion, allowing for faster binding—especially on thicker 300+ page books.

• Fully Disengageable Pins: 54 independent pulling pins allow you to customize the punch for any document length, ensuring a clean, centered finish without "half-punched" holes on the edges.

• Heavy-Duty "Power Lever": The ergonomic U-shaped handle provides maximum leverage, allowing you to punch up to 20 sheets at a time with minimal physical exertion.

Technical Specifications:

• Punching: Manual (up to 20 sheets of 20lb paper).

• Inserting: Electric (Built-in motorized roller with foot-pedal or manual switch).

• Hole Pattern: 4:1 Pitch Oval Holes (4mm x 5mm).

• Throat Width: 13" (Open-ended for longer documents).

• Construction: All-metal chassis and internal components.
